FAG
699-2Z>N
699-2Z>N
Regular price
€10,00
Regular price
Sale price
€10,00
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Delivery time approx. 2-4 working days
Produkteigenschaften
| Material | Rolling bearing steel |
| Außenring | Nut (N) |
| Dichtung | Double-sided cover plates (2Z) |
| Käfig | Steel sheet (JN) |
| Temperaturbereich | -20°C to +120°C |
| Toleranzklasse | PM |
| Bohrung | cylindrical |
Abmessungen
| Innen Ø (mm) | 9 | Außen Ø (mm) | 20 | Breite (mm) | 6 |

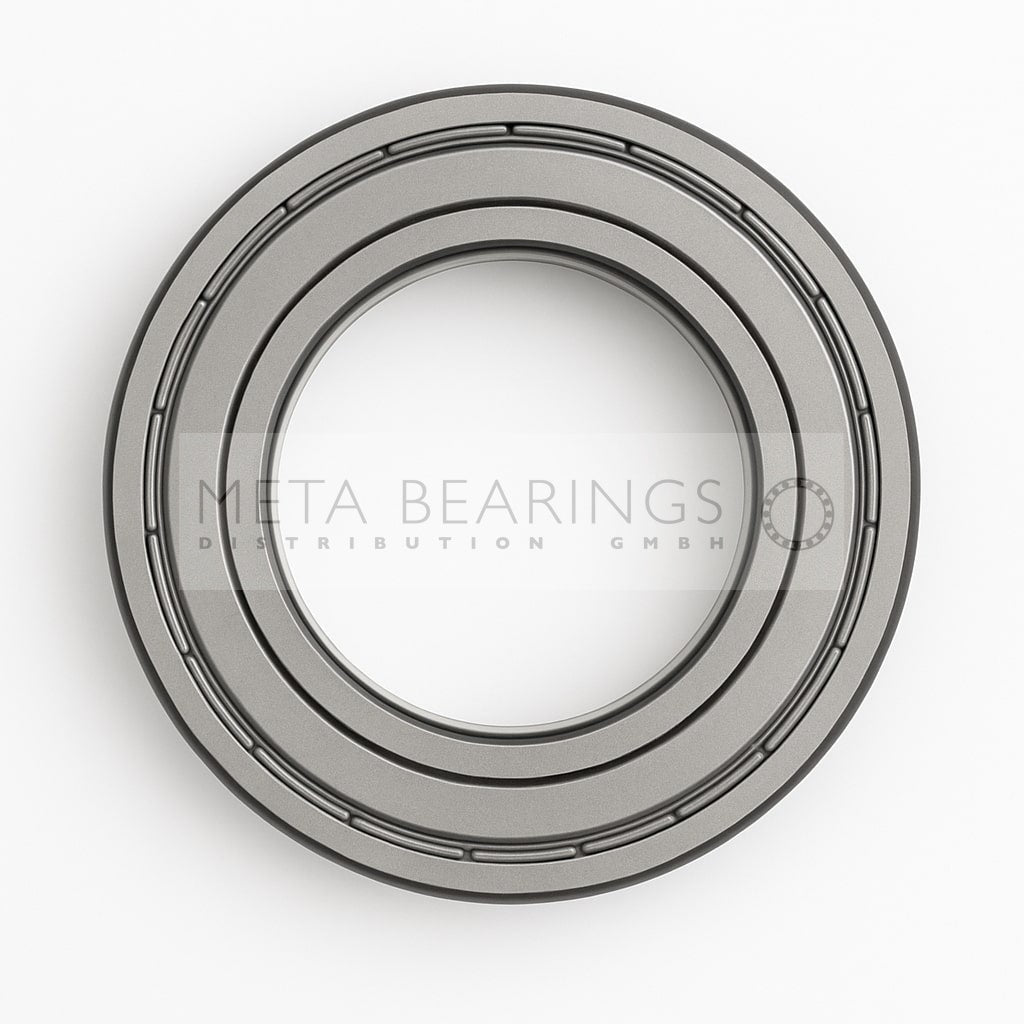

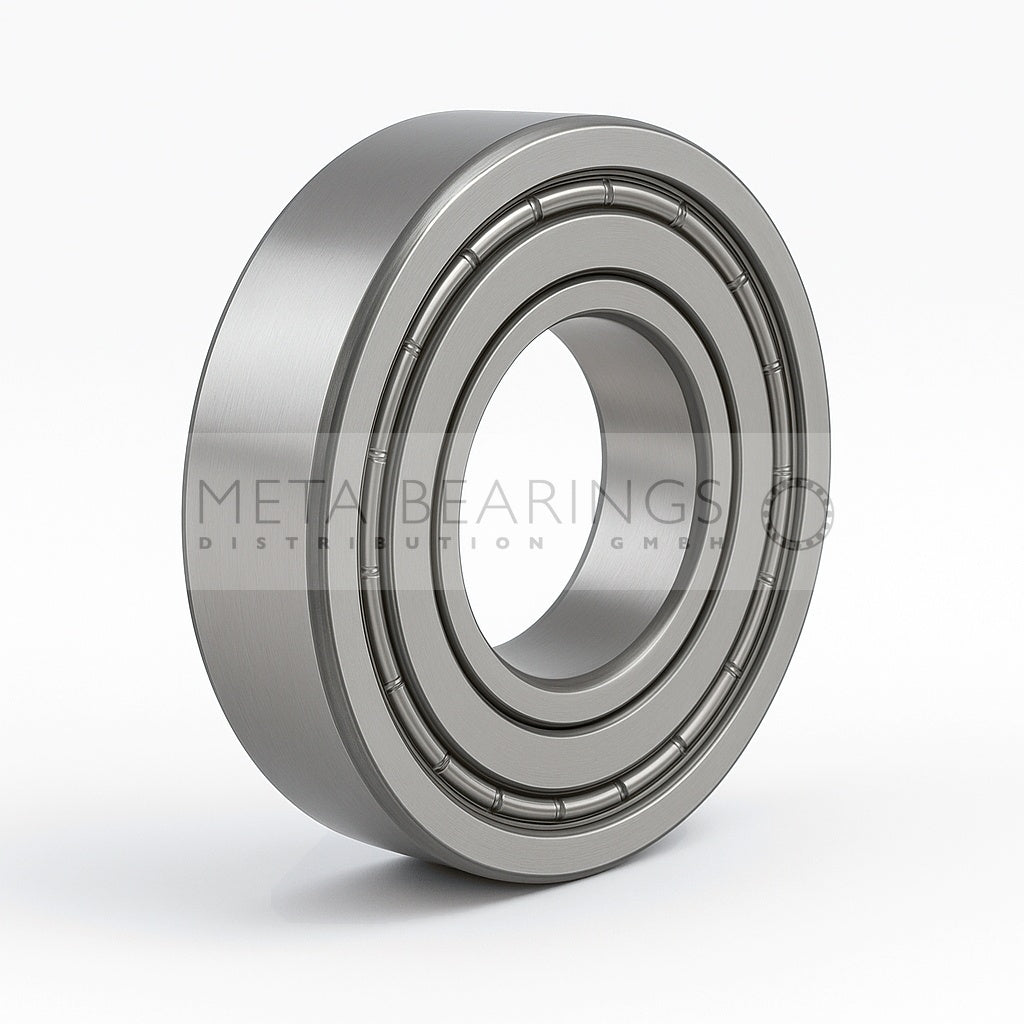

FAG 699-2Z>N – Deep groove ball bearing (single row) for clean grease guidance and quiet operation
Quality that safeguards processes
This single-row deep groove ball bearing is designed for smooth running and high speeds in series production applications. It primarily carries radial loads and can accommodate limited axial forces on both sides, making it suitable for use in many standard bearing seats. The uniform load distribution and stable vibration behavior ensure reproducible results during assembly and operation. This keeps the process window well-controlled even under varying operating conditions.
Design and manufacturing quality
The raceways are precision-machined and optimized for low friction and smooth start-up and stop-down behavior. A steel cage guides the balls in a balanced manner and stabilizes running. Made of bearing steel, it offers a durable, low-wear raceway surface. Non-contacting steel shields on both sides keep out light dirt and reduce grease loss; the bearing is factory-lubricated. The outer ring features a circumferential groove. Dimensional and running tolerances conform to standard tolerance class PN according to ISO 492. The bearing operates in a temperature range of -20 to +120 °C.
Convincing in everyday life
In practice, the product exhibits quiet, consistent operation with stable dimensional accuracy throughout its service life. The design facilitates low-maintenance use and simplifies planned quality assurance within the system.
Summary
The bearing combines smooth running, functional stability and reliable results for standardized applications.
Quality that safeguards processes
This single-row deep groove ball bearing is designed for smooth running and high speeds in series production applications. It primarily carries radial loads and can accommodate limited axial forces on both sides, making it suitable for use in many standard bearing seats. The uniform load distribution and stable vibration behavior ensure reproducible results during assembly and operation. This keeps the process window well-controlled even under varying operating conditions.
Design and manufacturing quality
The raceways are precision-machined and optimized for low friction and smooth start-up and stop-down behavior. A steel cage guides the balls in a balanced manner and stabilizes running. Made of bearing steel, it offers a durable, low-wear raceway surface. Non-contacting steel shields on both sides keep out light dirt and reduce grease loss; the bearing is factory-lubricated. The outer ring features a circumferential groove. Dimensional and running tolerances conform to standard tolerance class PN according to ISO 492. The bearing operates in a temperature range of -20 to +120 °C.
Convincing in everyday life
In practice, the product exhibits quiet, consistent operation with stable dimensional accuracy throughout its service life. The design facilitates low-maintenance use and simplifies planned quality assurance within the system.
Summary
The bearing combines smooth running, functional stability and reliable results for standardized applications.
